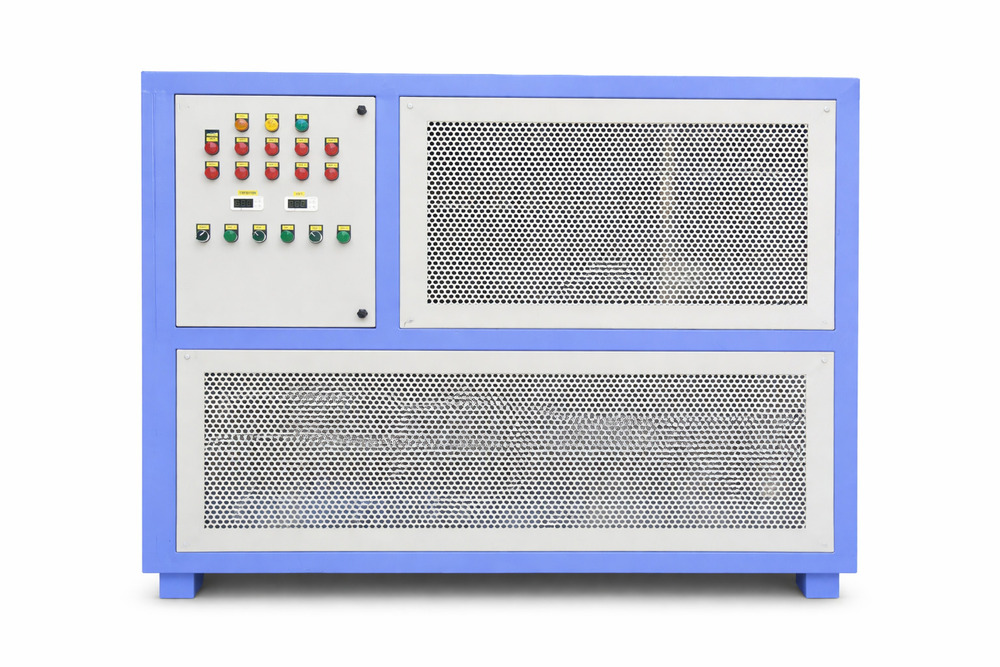

10 TR Air Cooled Glycol Chiller

Name: 10 TR Air Cooled Glycol Chiller
Brand: VINAYAK COOL POINT
Price: 400000 INR
Availability: InStock

Price 400000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

10 TR Air Cooled Glycol Chiller Specification

Material
Mild Steel (Powder Coated)

Motor
2 HP

Refrigerating Capacity
10 TR (35 kW)

Air Flow
3000 CFM

Application
Process Cooling, Industrial Equipment, Food & Beverage, Pharmaceutical

Condition
New

Type
Air Cooled Glycol Chiller

Dimension (L*W*H)
1700 mm x 1000 mm x 1450 mm

Power Supply
3 Phase, 50 Hz

Voltage
415 V

Cooling Type
Air Cooled

Nozzle Material
Stainless Steel

Cooling Coil Material
Copper with Aluminium Fins

Water Flowing Rate
2.3 m3/hr

Water Pump Motor
1.5 HP

Noise Control
Below 75 dB(A)

Compressor
Hermetically Sealed Scroll Type

Refrigerant Type
R-407C / R-134a

Tank Capacity
80 Litres

Installation
Floor Mounted, Plug and Play

Control Panel
Microprocessor Based Control Panel

Evaporator Type
Shell and Tube Type

Temperature Range
-5C to +25C Adjustable

Ambient Operating Range
Up to 50C

Condenser Type
Air Cooled Fin & Tube

Chiller Capacity
10 Ton Refrigeration

Frame Finish
Corrosion Resistant Powder Coating

Display Type
Digital Temperature Controller

Mobility
Heavy Duty Caster Wheels (Optional)

Glycol Solution
Ethylene or Propylene Glycol Compatible

Expansion Device
Thermostatic Expansion Valve

Connections
Inlet/Outlet BSP Threaded

Energy Efficiency
High EER, Low Power Consumption

Safety Features
High/Low Pressure Cut-outs, Overload Protection, Phase Protection

10 TR Air Cooled Glycol Chiller Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1-5 Week

About 10 TR Air Cooled Glycol Chiller

Introducing our Top 10 TR Air Cooled Glycol Chiller, crafted for eminent performance in process cooling, food, pharmaceutical, and industrial applications. This prodigious chiller, with a valuable 10 Ton Refrigeration capacity, is compatible with both ethylene and propylene glycol. It offers a wide, adjustable temperature range from -5C to +25C and boasts a high energy efficiency ratio (EER). Equipped with a digital controller, robust safety features, and a corrosion-resistant finish, this unit ensures unbeatable price and reliability. Experience plug-and-play convenience and precision engineering at an unparalleled offer.

Unmatched Advantages & Versatile Usage

The 10 TR Air Cooled Glycol Chiller stands out for its advanced temperature control, high EER, and versatile compatibility with both ethylene and propylene glycol. Perfectly suited for demanding applications in industrial processes, food & beverage, and pharmaceuticals, it delivers consistent cooling performance even in harsh conditions. With features like a digital display, microprocessor control, and multiple safety mechanisms, this unit provides a competitive edge, ensuring reliability, durability, and operational efficiency for eminent users.

Packaging, Market Availability & Timely Delivery

Each 10 TR Air Cooled Glycol Chiller is thoughtfully packaged to prevent transit damage and arrives ready for hassle-free installation. Shipped across India, our proposal amount includes secure packaging and reliable transportation. With a main domestic market in India, we prioritize prompt delivery, typically dispatching units within 2-3 weeks from order confirmation. Our tailored logistics ensure your equipment reaches its destination safely and swiftly, supporting your project timelines and operational demands.

FAQ's of 10 TR Air Cooled Glycol Chiller:

Q: How is the 10 TR Air Cooled Glycol Chiller installed?

A: The chiller is floor-mounted and offers plug-and-play functionality, making installation quick and straightforward. Heavy duty caster wheels (optional) provide mobility if needed.

Q: What safety features are included in the chiller?

A: It integrates multiple safety features, such as high/low pressure cut-outs, overload protection, and phase protection, ensuring dependable and safe operation in various industrial environments.

Q: Where can the 10 TR Air Cooled Glycol Chiller be used most effectively?

A: This chiller is ideal for use in process cooling, industrial manufacturing, food and beverage facilities, and pharmaceutical environments where precise temperature control is required.

Q: What are the main benefits of using this air cooled glycol chiller?

A: Users benefit from its high energy efficiency, robust cooling capacity, digital temperature control, and durable, corrosion-resistant construction, all delivered at an unbeatable price.

Q: How is the chiller shipped and what is the typical delivery timeline?

A: The chiller is securely packed and shipped across India, with delivery generally completed within 2-3 weeks after order confirmation, ensuring minimal lead time for your project.
